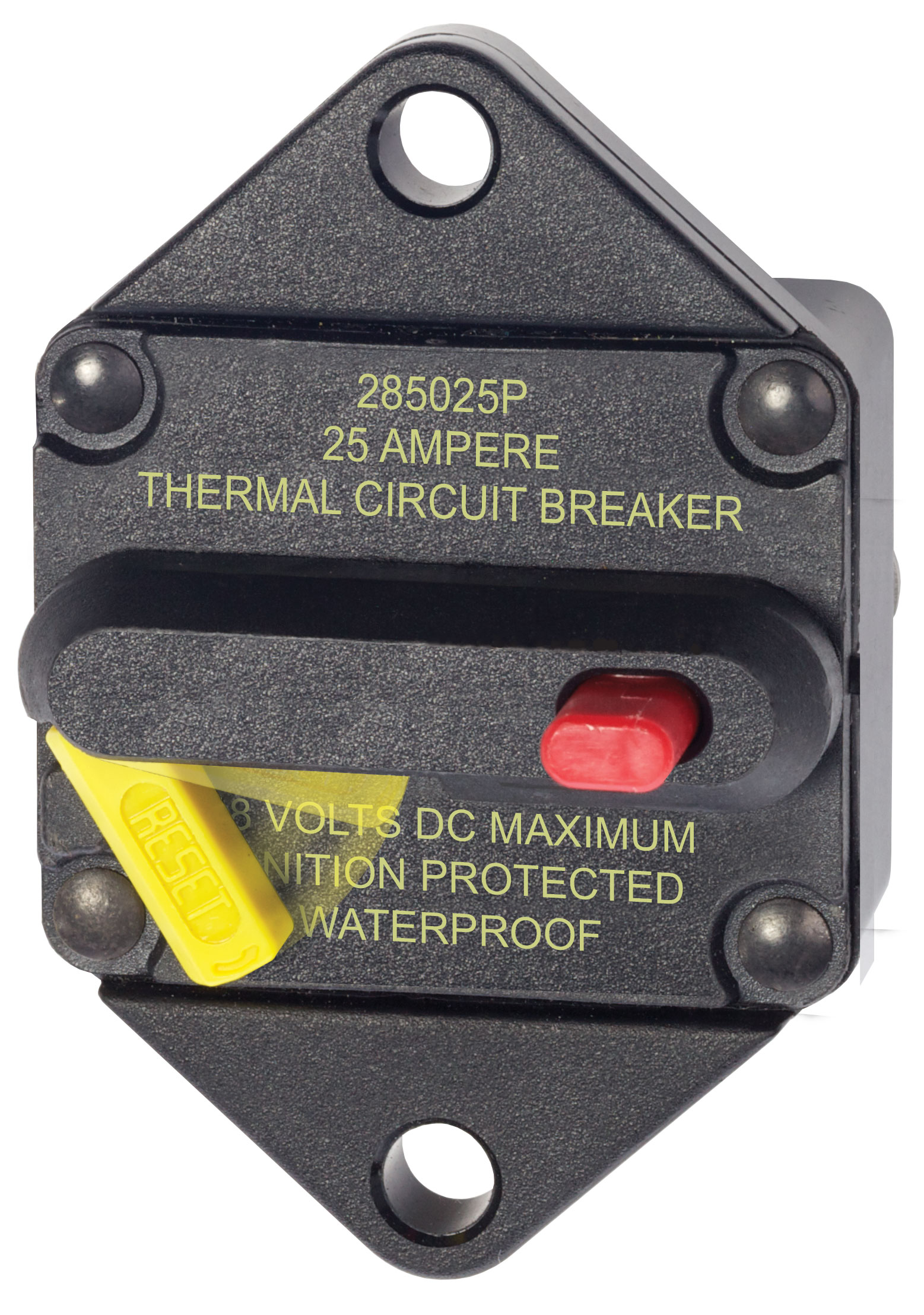

Blue Sea 7080-BSS 285-Series 25 Amp Circuit Breaker Panel Mount

Name: Blue Sea 7080-BSS 285-Series 25 Amp Circuit Breaker Panel Mount
Brand: Blue Sea Systems
SKU: FDU-99659
Price: 69.99 USD
Availability: InStock
Rating: 4.3 (4 reviews)

Brand: Blue Sea Systems SKU: FDU-99659

Availability: In Stock Ships same day if ordered by 12 pm

4.3 (4 reviews)

$69.99 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

4.3 / 5 0 reviews

In Stock Ships fast

Blue Sea Systems Authentic part

Description

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 25A

Model: 7080-BSS

Drop in replacement for 185-Series Circuit Breakers
Visible reset lever shows open condition
Ignition protected - Safe for installation aboard gasoline powered boats
Meets SAE J1171 external ignition protection requirements
Weather Resistant
Combines switching and circuit breaker function into one unit*
Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage

25A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud Torque	60 in-lb (6.78 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40 deg C
Maximum Operating Temperature	85 deg C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Terminal Stud	M6 (accepts 1/4 in Ring Terminal)
