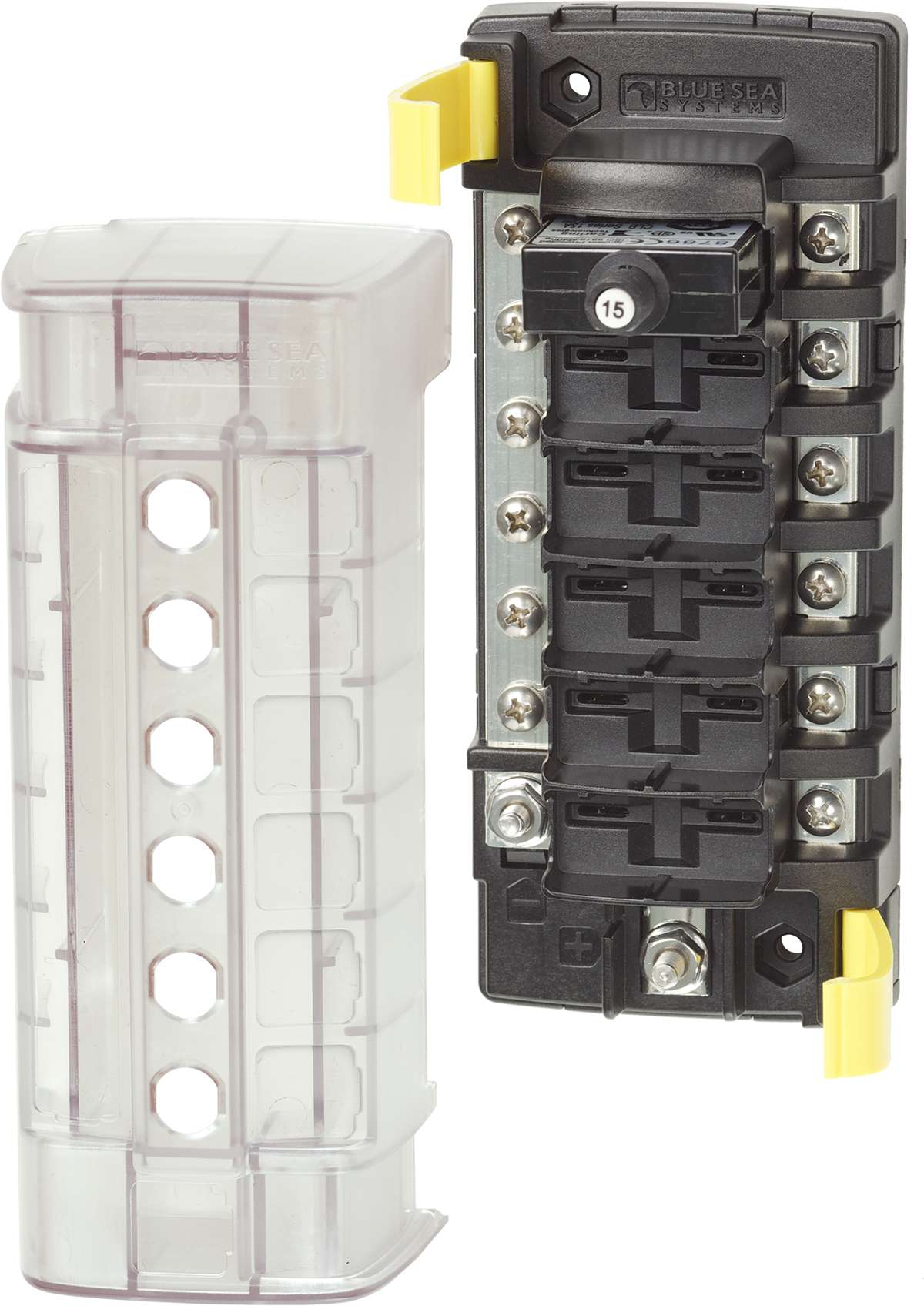

Blue Sea 5052-BSS ST CLB Circuit Breaker Block - 6 Position with Negative Bus

Name: Blue Sea 5052-BSS ST CLB Circuit Breaker Block - 6 Position with Negative Bus
Brand: Blue Sea Systems
SKU: Z6H-25651
Price: 449.99 USD
Availability: InStock
Rating: 4.4 (33 reviews)

Brand: Blue Sea Systems SKU: Z6H-25651

Availability: In Stock Ships same day if ordered by 12 pm

4.4 (33 reviews)

$449.99 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

4.4 / 5 0 reviews

In Stock Ships fast

Blue Sea Systems Authentic part

Description

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus

Model: 5052-BSS

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover
Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Specifications
Circuits

6
Maximum Amperage	100A (per block) 32A (per circuit)
Maximum Voltage	32V DC
Negative Bus	#10-32 Stud
Positive Bus	#10-32 Stud
Source	Common Source
Minimum Operating Temperature	-10 deg C
Maximum Operating Temperature	60 deg C
Mounting Centers	5.63in (143 mm)
