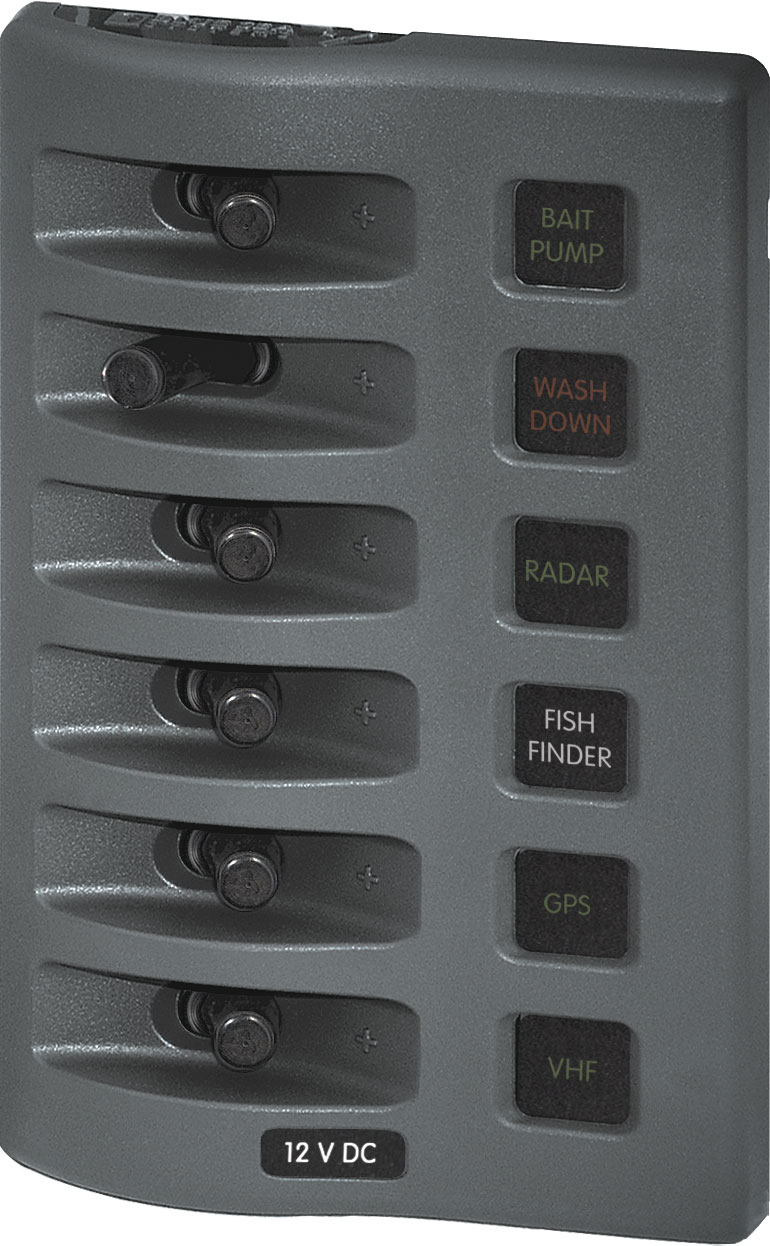

Blue Sea 4306-BSS Weather Deck Panel 12v 6 Gang Fuse

Name: Blue Sea 4306-BSS Weather Deck Panel 12v 6 Gang Fuse
Brand: Blue Sea Systems
SKU: XMH-67192
Price: 145.00 USD
Availability: InStock

Blue Sea Systems SKU: XMH-67192 (0)

$145.00 /each

In Stock — get it by Sat, Aug 8

Shipping charges may apply
Usually ships within 3 days
Restocking fees may apply

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

Blue Sea Systems Authentic part

Description

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 6 Positions

Model: 4306-BSS

Panel front rated IP67 when properly mounted with watertight mounting gasket
IP67 - protected against immersion up to 1 meter for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting circuit for remote switching and dimming
Available in 2, 4, 6, and 8 circuit models
Each panel can be mounted in four different orientations
Integrated ATO/ATC fuse based circuit protection
Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications
Weatherproof

Waterproof
Positions	6
Nominal Voltage	12vDC
Circuit Protection	Fuse
Maximum Amperage	15A @ 12V DC (per circuit)
Panel Cumulative Rating	90A
Backlit Label	Bicolored LED
Backlighting Amperage	10mA /Illuminated Circuit
Backlighting Voltage	12V DC
Material	Reinforced Polycarbonate
Dimensions H x W x D	6.0in x 3.88in x 2.50in
