Blue Sea 4163-BSS 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On
$34.99
/each
In Stock
— get it by Fri, Aug 7
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Blue Sea Systems
Authentic part
Description

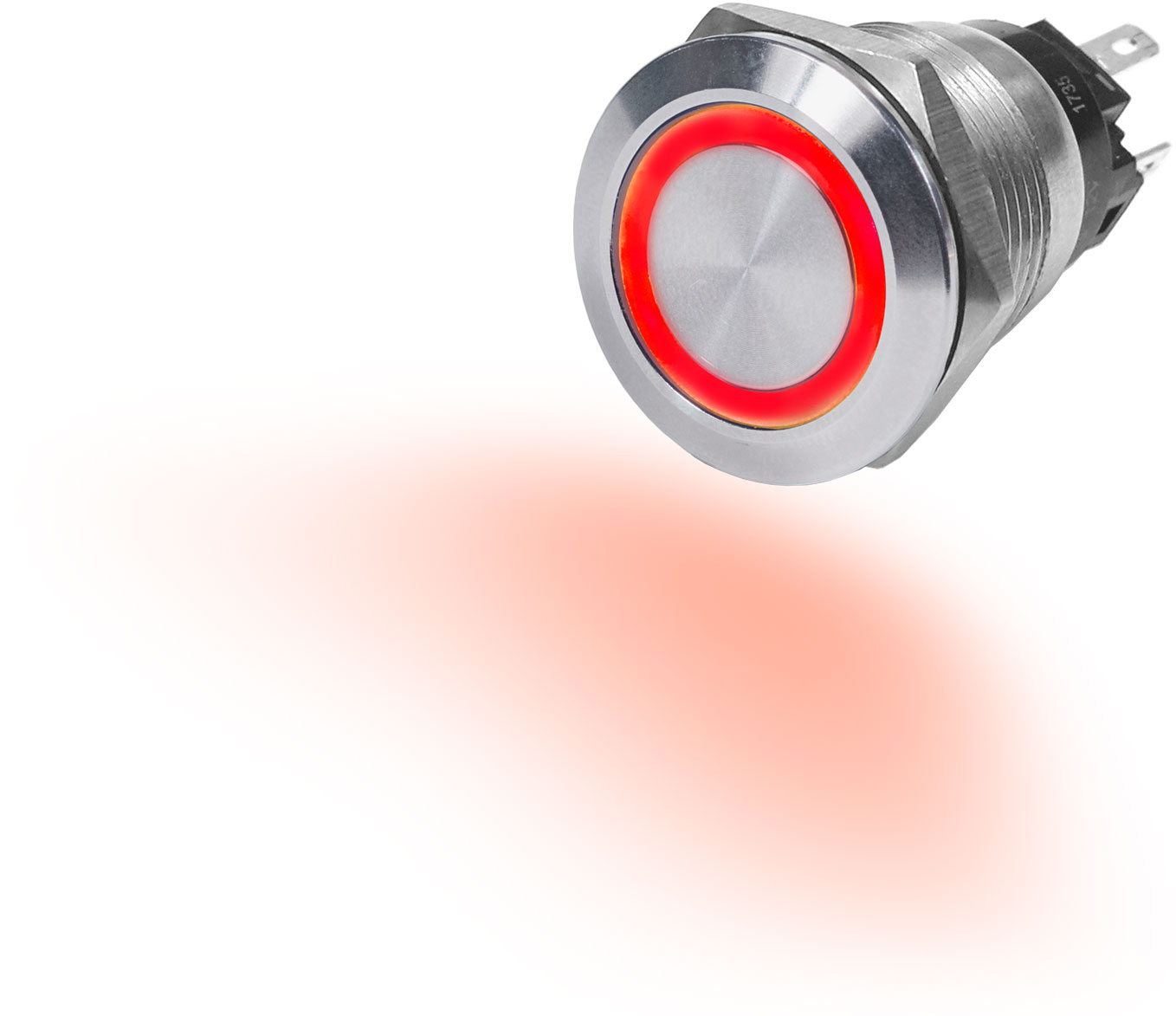

Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On
Model: 4163-BSS- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
| OFF-(ON)- Momentary One | |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -55 deg C |
| Maximum Storage Temperature | 85 deg C |
| Illumination | Independent - Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | 3⁄4 in (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 - 0.110inch Quick Connect terminals |
Specs
- Brand
- Blue Sea Systems
- SKU
- VIS-43305
- Category
- Switches
- Weight
- 0.2 lbs
- Dimensions
- 5.0 x 4.0 x 2.0
- Price
- $34.99
- Availability
- In stock
- Rating
- 0 / 5.0
