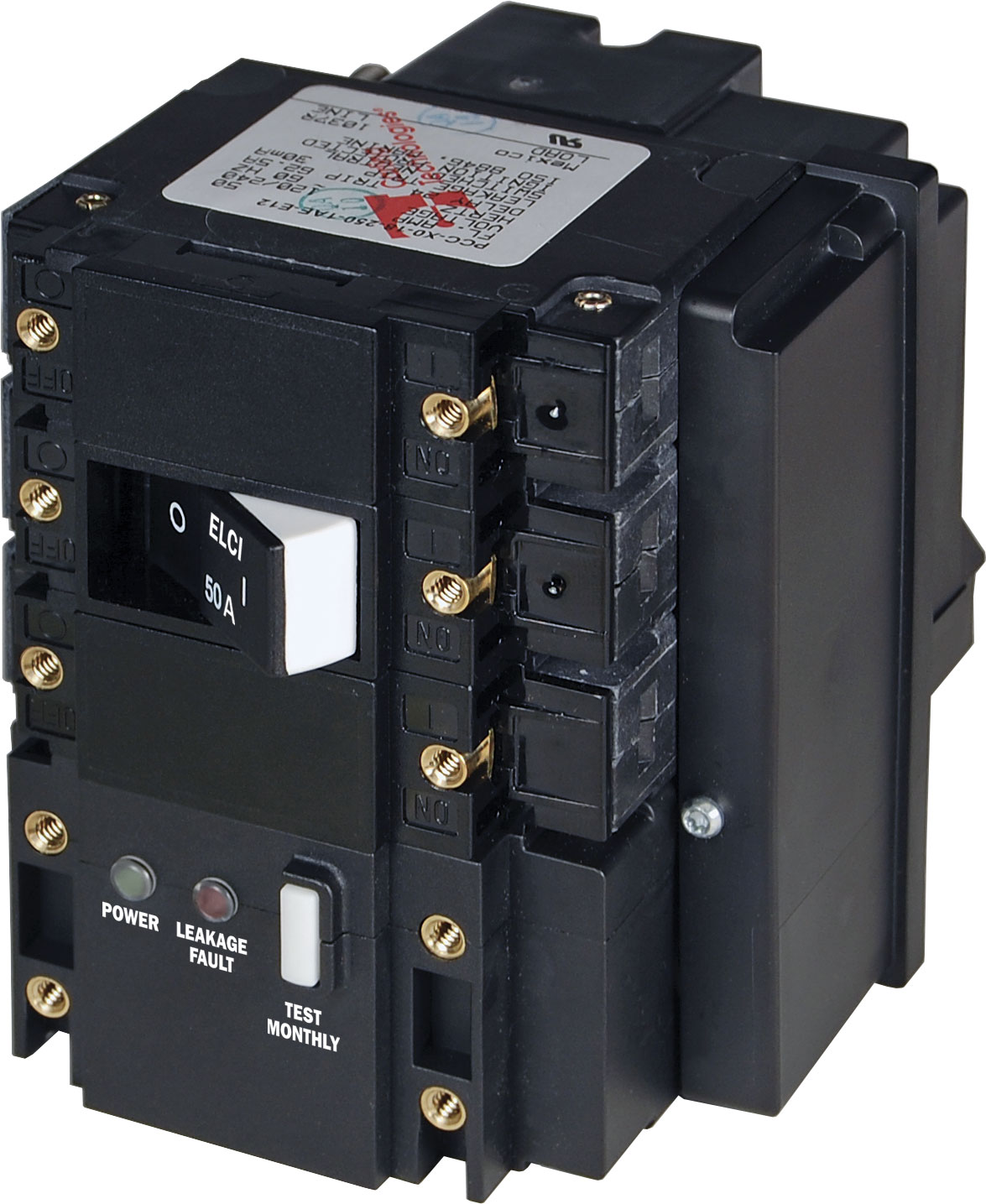

Blue Sea 3104-BSS C-Series ELCI 50A 120/240v AC Double Pole Main Circuit Breaker
Brand:
Blue Sea Systems
SKU: VNV-18903
Availability:
In Stock
Ships same day if ordered by 12 pm
4.4
(11 reviews)
$565.00
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
4.4 / 5
0 reviews
In Stock
Ships fast
Blue Sea Systems
Authentic part
Description
Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A
Model: 3104-BSS- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
| 50A | |
| Actuator Style | Flat Rocker |
| Poles | 3 |
| Ignition Protected | Yes |
| Maximum Voltage | 120V AC per pole 240V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 deg C |
| Maximum Operating Temperature | 66 deg C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
