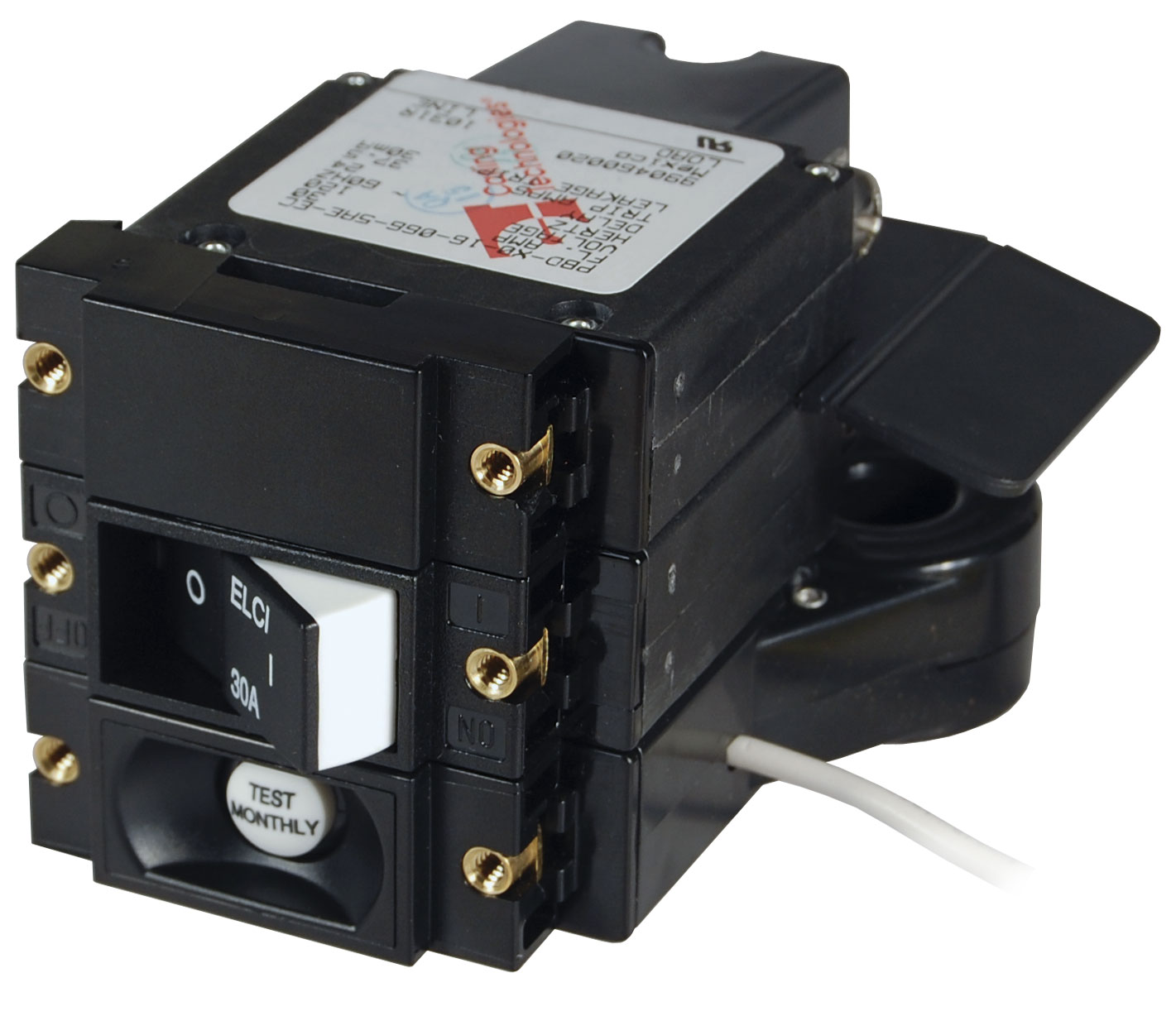

Blue Sea 3102100-BSS A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker
$495.00
/each
In Stock
— get it by Sun, Aug 9
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Blue Sea Systems
Authentic part
Description
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Model: 3102100- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
| 30A | |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 240V AC 120V AC per pole |
| Circuit Breaker Type | 5000A |
| Minimum Operating Temperature | -35 deg C |
| Maximum Operating Temperature | 65 deg C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
